PCBA processing

production capacity

There are 4 SMT patch production lines, equipped with newly imported Samsung S1 S2 high-speed patch machine, full-automatic solder paste printing machine, ERSA ten-temperature zone reflow furnace, AOI, SPI, x-ray and other high-end equipment, especially good at high precision and high complexity veneers, and have actual performance in producing ultra-complex veneers.

SMT Nissan Energy	2.4 million Point
SMT production line	4
Throwing rate	Resistance-capacitance rate 0.3%
	Class IC without material throwing
veneer type	POP/ordinary board/FPC/rigid-flex bonding board/metal substrate
Mount Component Specifications	Smallable package	01005 Chip/0.4 Pitch BGA
	Minimum device accuracy	±0.04mm
	IC class patch accuracy	±0.03mm
Mounted PCB Specifications	PCB Dimensions	5050mm - 610510mm
	PCB thickness	0.3-6.5mm

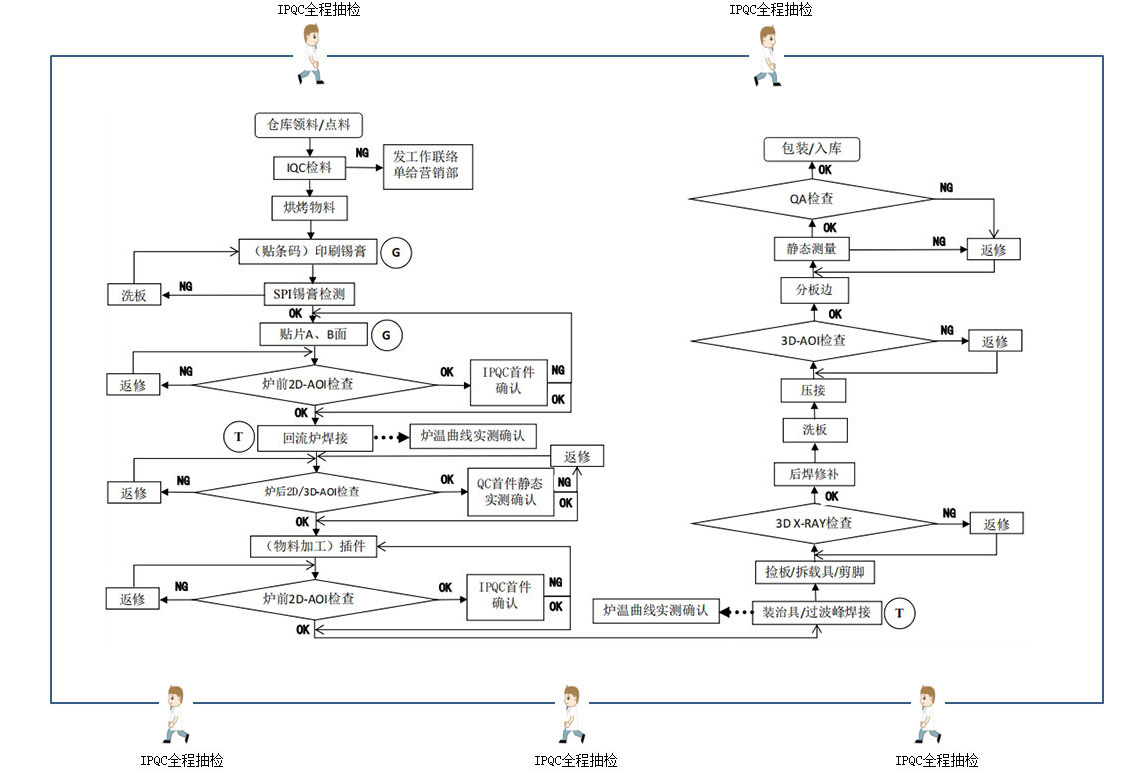

Process flow and capacity	Hold an order review meeting before the product goes online to warn the occurrence of problems in advance and provide solutions.
	Evaluate the opening requirements of steel mesh fixtures and reverse control the occurrence of supplier defects.
	Process engineers cooperate with production to solve process anomalies.
	In view of the unreasonable design of the customer, the corresponding summary report of the trial production problem will be given to help the customer optimize the design.
Quality control ability	① Intelligent first piece detector	Detection of wrong material, leakage, polarity, direction, silk screen, etc., mainly used in the first piece of detection.
	② SPI-Automatic 3D Solder Paste Thickness Gauge	Detecting all kinds of solder paste printing quality problems such as missing printing, less tin, more tin, even tin, deviation, poor shape, board surface pollution, etc.
	③ AOI	2D/3D AOI test and match to detect various problems after mounting: short circuit, leakage, polarity, displacement and wrong parts.
	④ Xray	3D X-RAY operation detection is matched with random inspection of 2D X-RAY to detect open circuit and short circuit of BGA, QFN and other devices.
